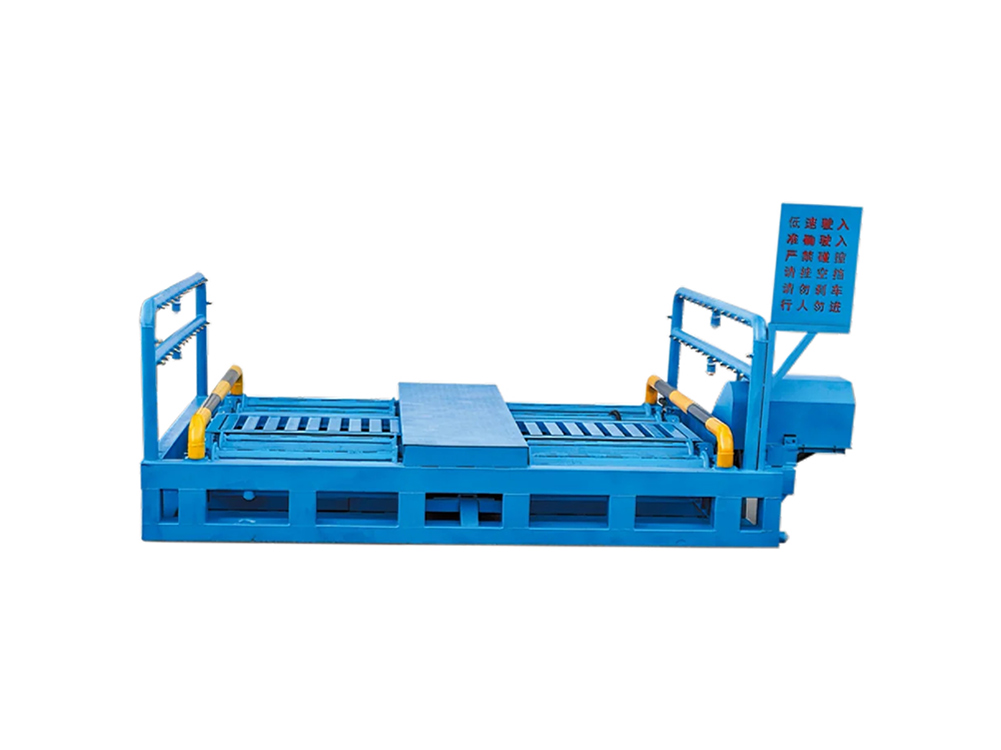

Mud-flushing roller wheel washer

Mud-flushing roller wheel washer

The fully automatic mud-flushing roller wheel washer is designed for the tires and chassis of various engineering vehicles based on the requirements of municipal administration, road administration, construction committee, environmental committee, transportation and other departments for construction vehicles. The equipment uses multi-directional high-pressure water to perform high-pressure flushing on the tires and chassis, thereby achieving the effect of thoroughly cleaning the wheels and chassis. It is a kind of mechanical equipment. Computer software control can automatically complete the flushing and mud discharge work. The flushing water can be recycled. When working continuously, only a small amount of water needs to be added, so a lot of water resources can be saved. It is especially suitable for cleaning vehicles entering and leaving various construction sites, mining factories, cement products factories, coal mines, power plants, landfills, high-end communities and other places, so as to achieve excellent projects without dust pollution. The equipment is easy to install and transport, and can be used for frequent transfers of various construction sites.

Specification

ModelYJ-180GC
Equipment sizeLength 2250MM*Width 4000MM*Height 1200MM
Installation sizeLength 2350MM*Width 4000MM*Height 450MM
Cleaning methodRoller rotation flushing
Power requirementThree-phase/380V/50HZ
Pump power15KW high power water pump
Flush pressure5-6KG
Spray height6-8 meters
Water supplyDN25
Washing speed40~50 vehicles/hour
Maximum load120 tons
